BFP 4-Pass Boiler

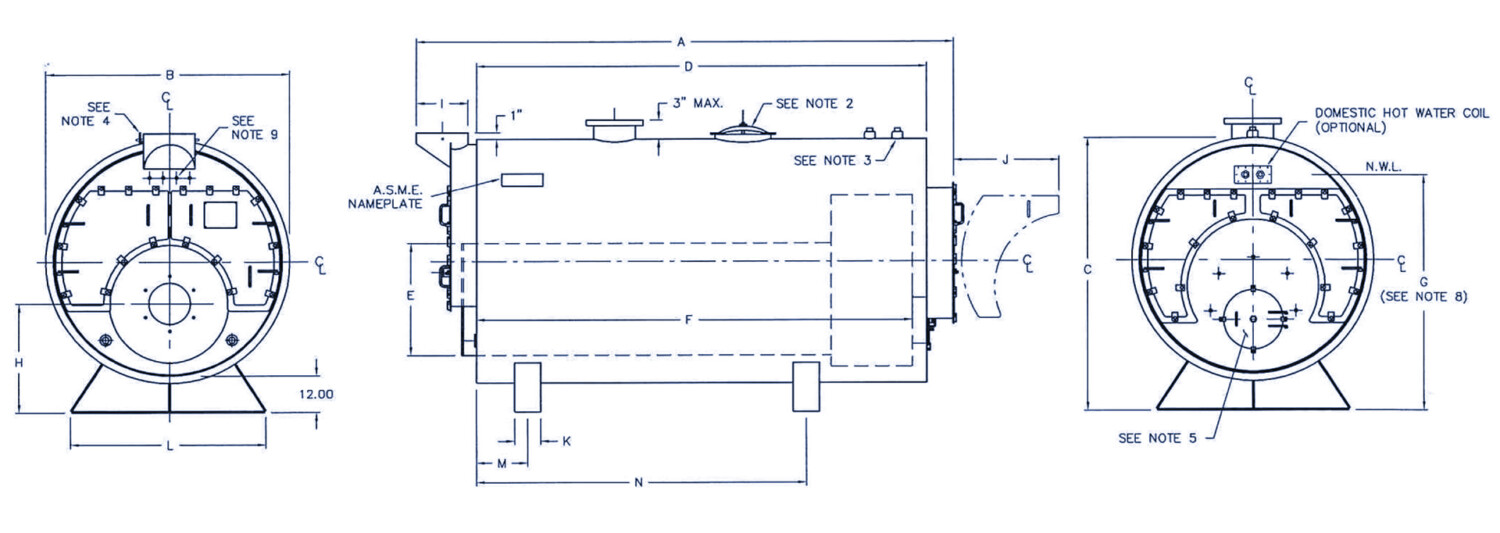

BFP-4-Pass-Boiler-2023

Notes

  1. Boiler shown with 3" fiberglass insulation jacket.
  2. Manhole, when required by code, will be 12" x 16".
  3. Safety or Relief Valves: size and quantity to be determined by ASME code.
  4. Locking Damper in vent outlet—standard.
  5. 20" dia. access opening with refractory lined door and observation port—standard.
Specifications subject to change without notice.
  1. All standard trim (safety or relief valves, steam gauge, water column, gauge gloss and tri cocks) shipped loose.
  2. All boilers are designec, built and inspected in accordance with ASME code.
  3. If no coil is used, water line may be lowered 2".
  4. All boilers supplied with (4) 0 0.50 NPT exhaust test ports.

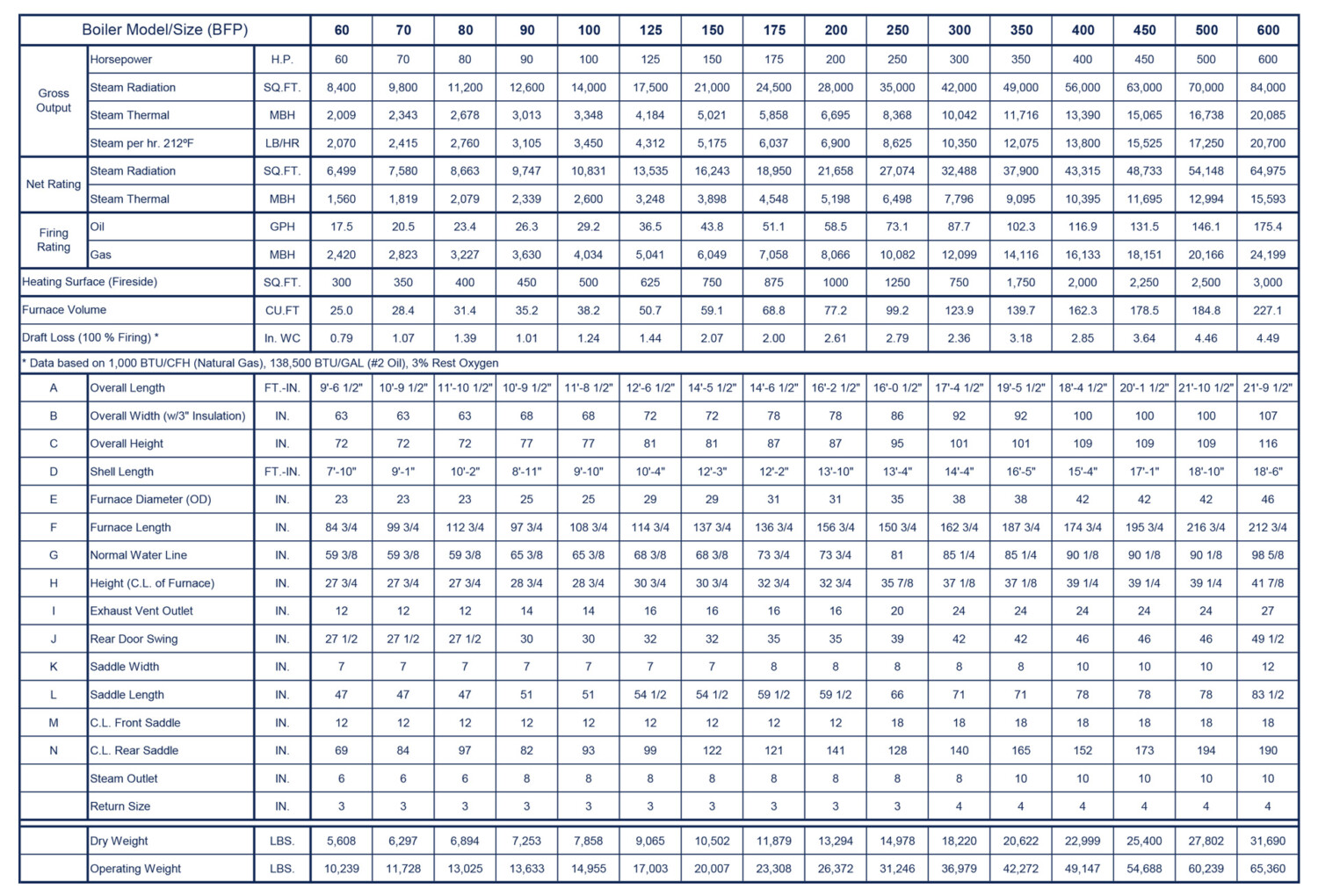

BFP 4-Pass Boiler Specifications

The BFP 4-Pass Boiler offers a range of horsepower from 60 HP - 600 HP.

BFP-4-Pass-Boiler-specs-2023
Download All Model Specs
